At present, the application of LED display screens is becoming more and more extensive, and the level of technological development is becoming more and more advanced. At present, the dot pitch of LED display screens can reach 2.0 or even below 1.0. Have you ever seen the design of weather video conference system based on P1.6 small-pitch LED display? Next, Liancheng sent the editor to take everyone to take a look!


introduction

The existing video conferencing system of Nanchong Meteorological Bureau was completed and accepted in 2010. It adopts (3×2) 50-inch DLP display unit technology. The service time of the whole system has been far longer than the average trouble-free time of 30000h required by the large screen. The following problems occur :


(1) The screen resolution cannot meet business needs. With the advancement of meteorological modernization in recent years and the continuous improvement of forecasting technology, the use of meteorological consultation has become more and more normalized. The screen display of the consultation system needs to serve real-time monitoring and analysis and forecast and early warning: precipitation, wind field, temperature , humidity, air pressure and other meteorological elements need to be analyzed by radar products. The low resolution of the original DLP screen can no longer meet the needs of the current work.


(2) The electronic components of the screen are seriously aging. The screen image splicing processor has been repaired for many times due to failures, and the maintenance cost has increased year by year; the screen WH-HC-HRT- equipment bulbs have been used for too long, the screen display is dark and yellow, and many bulbs have been repaired due to failures. Replacement, the color brightness of each display unit in the screen is uneven.


(3) The screen splicing gap is large, which affects the appearance of the display screen. Due to the technical limitations of the DLP display unit, the distance between each display unit of the large screen is too large, the sense of picture splicing is obvious, and the display images at the seams are lost, which affects the integrity and aesthetics of the picture splicing display.


(4) The screen splicing method is unreasonable, and the display mode is single. In daily business operation, two modes are used: 2×2 display units are used for far-end display, and the remaining two pieces, one for near-end and one for repeat display of far-end; or 2×2 display units for near-end Display, there are two left, one shows the far end, and one repeats the display of the near end. When the work of the Meteorological Observatory needs to be visited and displayed externally, the diversity and integrity of the entire display platform of the Meteorological Observatory is affected due to the limitation of insufficient screen display modes.


Aiming at such usage status, the high-definition video conference system of Nanchong Meteorological Bureau The existing video conference system of Nanchong Meteorological Bureau was completed and accepted in 2010, and urgently needs to be upgraded to adapt to the development of weather forecast consultation and intelligent meteorological service integration display need.


1. HD display design


1.1 Display system functions


As a high-definition video conferencing system display, it needs to have the following functions:


(1) As a conference command analysis and speech presentation for local people to watch;


(2) Graphic segmentation/fusion, which can support simultaneous access of multiple channels of information;


(3) Daily weather consultation information access;


(4) Show the scenes of the remote conference department and switch them arbitrarily;


(5) Display participating weather-related information, product data, etc.;


(6) Display various meteorological monitoring and forecast product data, etc.



1.2 Selection of high-definition video display technology


At present, the mainstream large-size high-definition video display technologies on the market include LCD liquid crystal, DLP rear projection, and small-pitch LED display.


(1) Display effect: DLP technology processes the image signal digitally and then projects it. The physical properties of the projection determine its display effect is the worst. The brightness of the LCD screen will decay after being used for a long time, and dark edges and black corners will appear. Small-pitch LED technology has the highest brightness value, and has the function of intelligent brightness adjustment to adapt to the display environment. It is suitable for environments with large spaces and high brightness requirements. Smooth and no ghost; can also solve the problem of light attenuation through point-by-point correction.


(2) Screen seams: Both LCD and DLP screens have seams, and the distance between the seams of DLP is smaller. The screen with small-pitch LED technology can achieve optical seamlessness.


(3) Service life: LED technology has the longest service life.


(4) Maintenance cost: The LED display screen is spliced by miniature lamp beads assembled from light-emitting diodes. When the screen has a bad pixel, only the corresponding faulty lamp beads need to be replaced, which reduces maintenance costs and improves work efficiency.


To sum up, combined with the actual application of high-definition video conference business of Nanchong Meteorological Bureau, small-pitch LED technology has great advantages.


1.3 HD Display Design


Nanchong Meteorological Bureau uses a P1.6 small-pitch LED display to meet the display needs of high-definition video conferences. The light emitting diode (light emitting diode, LED) display screen is composed of miniature lamp beads assembled by light emitting diodes. A lamp bead is a pixel light-emitting point of the display screen. The P1.6 small-pitch LED display shows that the distance between each lamp bead is 1.6mm[4]. The quality of the P1.6 high-definition screen is comparable to that of an LCD screen, with high color saturation, smooth operation without ghosting, and no graininess in the picture. It has the following characteristics: completely eliminate bright lines and dark lines; the appearance of the screen is flat; the color gamut expands more naturally, and the three-primary color imaging has a wide, vivid and natural color gamut; gamma gamma correction without secondary compensation, high-fidelity colors; comfortable and comfortable viewing Flickering, top-level drive components, extremely fast response, speed < 50 ns, high refresh rate, high gray scale, strong color layering; no tailing of dynamic pictures, pre-charging circuit layout, coordinated control of conduction voltage drop, completely eliminate ghosting, Pre-arrange high-performance components to prevent reverse leakage and eliminate caterpillars. The effect of optimizing the screen display is shown in Figure 1.



Figure 1 Screen display optimization effect display



The thickness of the P1.6 small-pitch LED screen is 3 cm, which is far superior to the thickness of the traditional display screen above 10 cm. Using the QFN principle to develop the chip and using the bottom heat dissipation technology, not only the heat dissipation is more uniform, but also the excess heat energy can be converted into electrical energy. Compared with ordinary display screens, the energy consumption can be saved by more than 50%.


2. Display system design


The high-definition video conference display system uses a P1.6 small-pitch LED screen (6500 mm × 1825 mm). The LED screen consists of a standard cabinet, LED display module, display control system, control computer, power distribution cabinet, load-bearing bracket, etc. composition. The schematic diagram of the high-definition video conferencing system display system is shown in Figure 2.

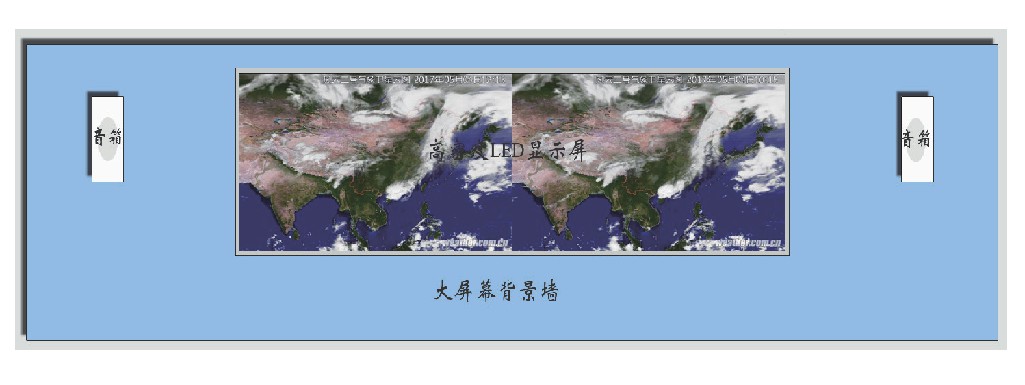

Figure 2 Schematic diagram of the display system of the high-definition video conference system



2.1 Display system features


2.1.1 High-precision die-cast aluminum cabinet


Splicing seamless LED small-pitch LED display screens are spliced by many display unit boxes. The flatness of the boxes and the gaps between the boxes are directly related to the overall effect of the boxes after assembly. This system adopts the one-piece molded die-casting aluminum box with a flatness within 0.1 mm, and is loaded with LED display electronic components. The main advantages are: the casting has high dimensional accuracy, smooth surface and good dimensional stability, which is very suitable for the basic splicing unit structure of small-pitch display screens; the use cost is low, and the die-casting aluminum mold has a long life. As shown in Figure 3, the spliced seamless high-precision die-casting aluminum box can meet the structural requirements of high-precision LED small-pitch display screens.

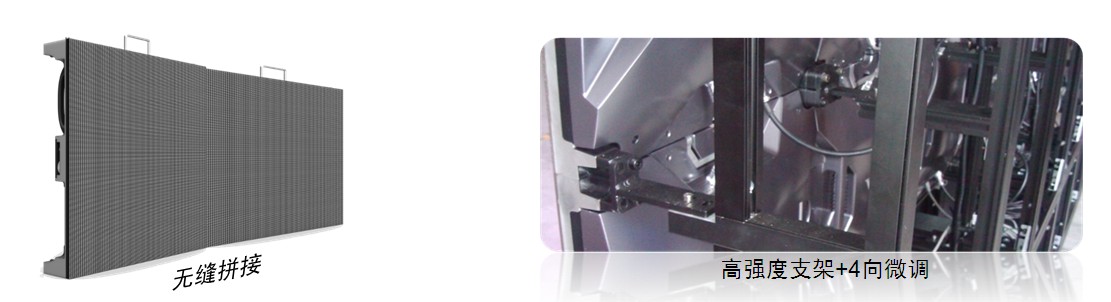

Figure 3 Splicing seamless high-precision die-casting aluminum box


2.1.2 Control system hot backup


A high-brush and high-gray professional-grade LED display studio system is adopted, as shown in Figure 4, the signal system architecture. The control unit is designed with a signal data input/output two-way port, and the signal of the LED display frame is connected by a data cable with high shielding performance. End to end. In this way, the problem of lack of LED display signal caused by signal failure and thus affecting the playback picture is avoided.

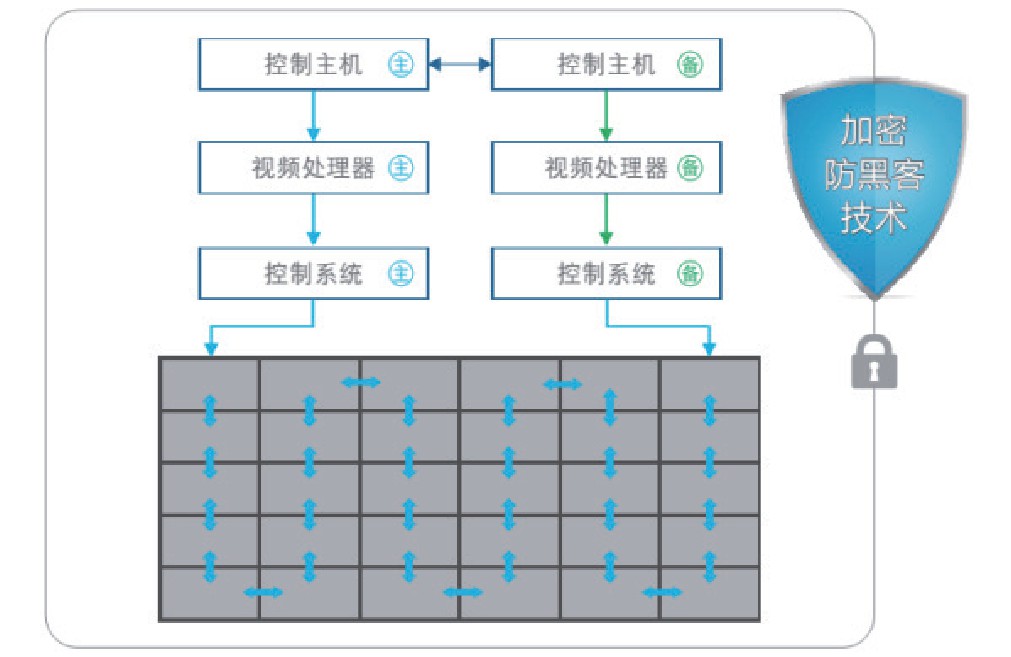

Figure 4 Signaling system architecture


2.2 Power supply design


2.2.1 Power system hot backup


Figure 5 shows the comparison between the hot backup of the power system used in this project design and the traditional power supply system.


N+1 high-power power supply configuration mode is adopted. Under normal working conditions, the three power supplies are all in a low-load working state. The heat of the power supply is small and the service life is long. Other rated load range. This effectively solves the failure problems of the LED display system such as a black screen, and improves the stability of the LED display system.

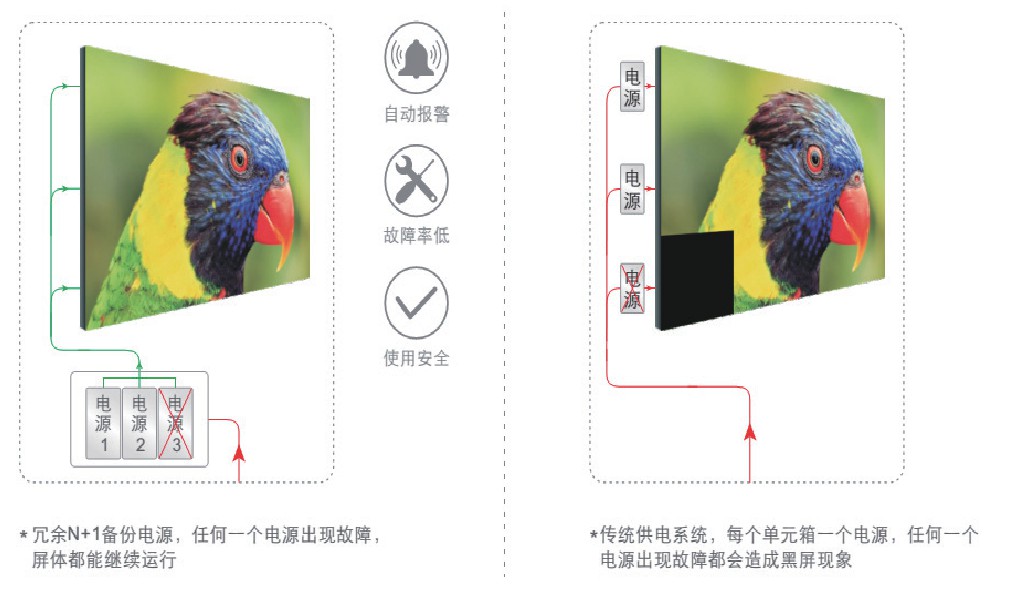

Figure 5 Comparison of power hot backup and traditional power supply system


2.2.2 AC/DC power distribution technology


Using the new AC/DC power distribution technology and centralized power transmission, the intermediate voltage of the whole system is higher than the low voltage (4.2 V) required by the unit board drive, the current density in the transmission wire is reduced, and the corresponding line loss is less , conducive to energy saving.


(1) Each LED module conductor comes with a very high-efficiency DC-DC converter, which generates relatively low thermal flux, which makes the temperature field (temperature field gradient) inside the display more evenly distributed, and the LED junction The temperature is lowered, which ensures that the LED displays the working environment temperature.


(2) With centralized power transmission, the leakage current to the ground of the whole system is greatly reduced, the impact current of cold start is also greatly reduced, the PFC is significantly improved, the harmonic energy is reduced, and the stability of the whole system is improved.


(3) The wiring of the whole system becomes simple and intuitive, the total length of the DC wiring harness is shortened, and the length of double-insulated AC cables is reduced, which can save a lot of wire costs for power distribution in the box.

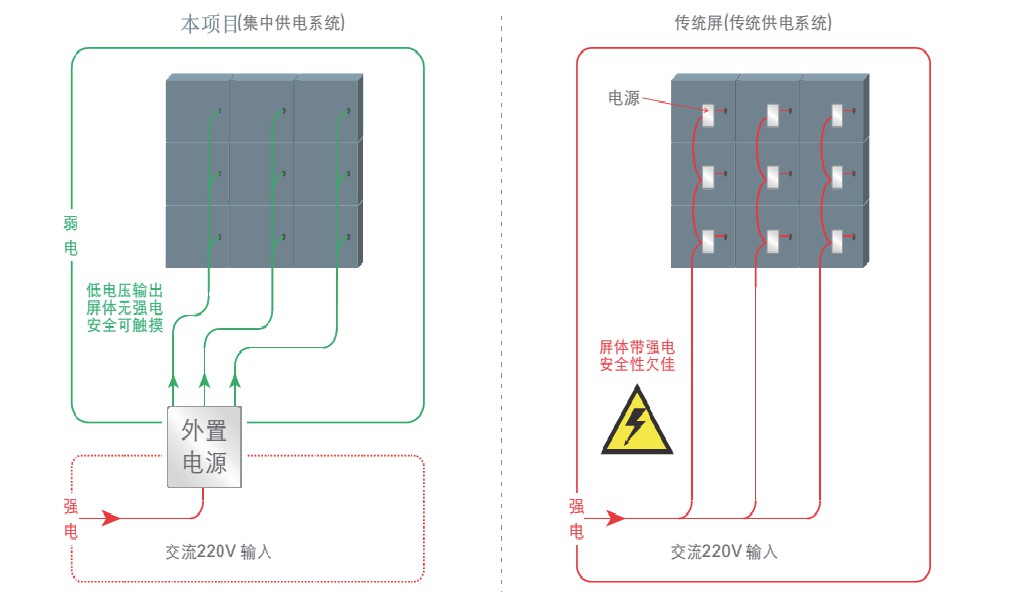

Figure 6 Comparison of centralized power supply system and traditional power supply system


2.3 Energy Efficiency Improvement Technology


This system adopts a new architecture that improves power supply efficiency and power supply current sharing, reduces the failure rate of key components, and improves the stability of the LED display system.


The intermediate voltage conversion mode of AC/DC and DC/DC is adopted to maximize the utilization of power resources. Three high-power power supplies are connected in parallel, and the adjacent power supplies are connected by current-sharing data lines. When one power supply fails, The other two power supplies can supply power normally to ensure the normal playback of the LED display system. The conversion efficiency of the DC/DC module power supply is high, so that the power utilization efficiency is improved, and the heat generation is small, the failure rate is low, and the stability of the LED display system is improved.


3. Design of video conferencing system


Because the previous video conferencing system has been used for more than ten years, the camera is aging to a certain extent, the shooting picture is blurred and yellow, and the remote conference experience is poor. The video terminal also frequently breaks down, often crashes in the middle of the meeting, and needs to be restarted, which seriously affects the business work. Therefore, it is urgent to update a set of video conferencing system.


At present, the video conference system of the Meteorological Department of Sichuan province is using POLYCOM equipment. In order to ensure the smooth development of video conferences in provinces, cities and counties, a POLYCOM550 video conference terminal compatible with the provincial system is adopted. The terminal can be widely used in conference rooms and other collaborative environments. Its rich interfaces make it suitable for integrated applications of various large and medium-sized conferences. Its intelligent matching technology can also facilitate users to start and manage video calls through iPad .


The video resolution of POLYCOM550 can reach 1080 P 60 frames/s, which enables meteorological business communication to achieve a higher level of clarity and authenticity, thereby improving video usage and team work efficiency, and can easily meet the needs of sharing videos, designing animations or other At the same time, application scenarios that require higher resolution and fluency, high-definition, ultra-smooth characters and content make video collaboration more efficient and free.


4. Application effect


Nanchong Meteorological Bureau's meteorological video consultation system based on P1.6 small-pitch LED screen technology has been put into operation, and it has undertaken various forecast consultations such as the daily national morning weather consultation, the 11:00 am consultation with the Sichuan Provincial Meteorological Department, etc. Meetings, all kinds of temporary remote training, video conferencing, and also responsible for the work tasks of visiting and displaying foreign personnel, all-weather standby, heavy workload, and frequent use. This system can meet the needs of high-definition video conferencing, whether it is a national, provincial, city, county, provincial, city, district, city, or state meeting, or a city or county meeting. The operation is stable during use, the group meeting and participation are convenient and fast, the video dual-stream signal display is clear, and the delay of various demonstration actions is low, which meets the system design expectations.


5 Conclusion


Nanchong Meteorological Bureau designed and implemented a high-definition meteorological video conference system based on P1.6 small-pitch LED screen technology, which met the needs of Nanchong Meteorological Bureau for remote video conferences, and strengthened the upper-lower communication with the business personnel of the upper and lower meteorological departments. It helps to improve forecasting technology and improve forecasting accuracy. In actual work, this video conferencing system is also used in various administrative meetings, business training, technical exchanges, work deployment, etc., to achieve the expected construction goals. Especially during the new crown pneumonia epidemic, it played an important role in the normal development of Nanchong meteorological services, and related technologies are worthy of promotion and application.
