Four Methods of LED Electronic Display Failure Testing

Publisher: Supplier of LED Display Time: 2018-03-01 Views: 1302

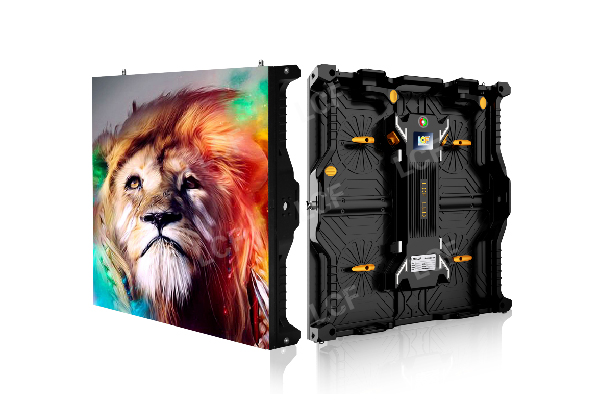

With the popularization and application of LED electronic display, LED display has become a beautiful landscape in today's information society, especially when night comes, LED display blooms bright pictures, making people feel the world is colorful. In the process of expanding the application scope of LED electronic display screen, more and more fault problems occur in the display screen, so how to test the fault problem of LED electronic display screen? The following Liancheng Xiaobian (www.lcf-led.cn) will explain it to you.



1. Resistance detection method, adjust the multimeter to the resistance gear, detect the resistance value of a certain point of a normal circuit board to ground, and then test the same point of another same circuit board to test whether the resistance value is different from the normal resistance value. If not, the scope of the problem is determined.



 Second, the voltage detection method, adjust the multimeter to the voltage level, detect the ground voltage of a certain point of the circuit suspected of having a problem, and compare whether it is similar to the normal value, otherwise the scope of the problem is determined.



Third, the short-circuit detection method, adjust the multimeter to the short-circuit detection gear (some are diode voltage drop gear or resistance gear, generally with an alarm function), detect whether there is a short-circuit phenomenon, and find the short-circuit should be prioritized to solve it so that it does not burn out other devices. The method must be operated with the circuit de-energized to avoid damage to the meter.



Fourth, the voltage drop detection method, adjust the multimeter to the diode voltage drop detection file, because all ICs are composed of many basic units, but they are miniaturized, so when there is current passing through one of its pins, There will be a voltage drop across the pin. Generally, the voltage drop on the same pin of the same type of IC is similar. According to the voltage drop value on the pin, the operation must be performed when the circuit is powered off. This method has certain limitations. For example, if the detected device is high resistance, it cannot be detected.



The above is the summary of Lianchengfa Xiaobian's fault test methods for LED electronic display screens. I hope it will be helpful to everyone.
