When we talk about LED displays, in addition to brightness, color and resolution, pixel pitch is also a very important parameter. The pixel pitch determines the sharpness and viewing distance of the LED display, which is crucial for choosing a display that is suitable for different application scenarios. The LCF editor will take you deeper into the concept of pixel pitch in LED displays, the factors that affect it, and how to choose the right pixel pitch.


First, the concept of LED display pixel spacing


LED display pixel pitch, also known as point pitch, refers to the distance between two adjacent pixel points. Usually expressed in millimetres (mm), such as P3, P4, P5, etc. The smaller the pixel spacing, the denser the pixels, the higher the resolution of the display, and the more delicate the display picture. On the contrary, the larger the pixel spacing, the more sparse the pixels, the lower the resolution, and the display picture is relatively rough.

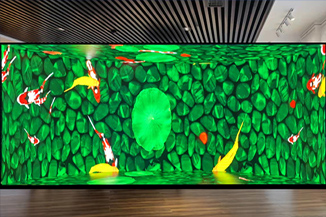

LED display pixel pitch


Second, the factors that affect the pixel spacing of the LED display


1. Viewing distance: The choice of pixel spacing should be determined according to the distance between the audience and the display screen. In general, the closer the audience is to the display, the smaller the pixel spacing required to ensure the clarity of the picture. Conversely, the farther away the viewer is from the display, the required pixel pitch can be appropriately increased.


2. Resolution requirements: Different application scenarios have different requirements for the resolution of the LED display. Such as high-definition video conferencing, digital billboards, etc., require a higher resolution, so the pixel pitch should be selected as small. And some outdoor large billboards, sports venues and other scenes, the resolution requirements are relatively low, you can appropriately choose a large pixel spacing.


3. Cost consideration: The smaller the pixel pitch of the LED display, the higher the manufacturing cost and technical difficulty is usually. Therefore, on the premise of meeting the viewing distance and resolution requirements, the cost factor should be considered comprehensively to choose the pixel spacing with the highest cost performance.


Third, how to choose the appropriate LED display pixel pitch


Choosing the right pixel pitch for the LED display requires a comprehensive consideration of the above factors. Here are some suggestions:


1. Determine pixel spacing according to viewing distance. In general, the distance between the viewer and the display should be 1.5 to 3 times the height of the display. For example, if the viewer is about 3 meters away from the display, a pixel pitch of P3 or P4 may be appropriate.


2. Determine the resolution requirements based on the application scenario. For scenes that need to display high-definition picture quality, such as video conferencing, digital billboards, etc., a smaller pixel pitch should be selected. For outdoor large billboards, sports venues and other scenes, you can appropriately choose a larger pixel spacing.


3. Under the premise of meeting the viewing distance and resolution requirements, comprehensive consideration of cost factors. Choose the most cost-effective pixel pitch, which can meet the needs of use and save costs.


Fourth, conclusion


The pixel pitch of the LED display is a key factor affecting the clarity and viewing distance of the display. When choosing an LED display, the appropriate pixel pitch should be selected according to the viewing distance, resolution requirements and cost. Through the introduction of this article, I believe you have a deeper understanding of the pixel pitch of the LED display, and I hope to provide you with a reference when purchasing and using the LED display.
