In the bright starry sky of modern science and technology, LED electronic display module is like a shining star, they are unique charm and excellent performance, constitute the colorful LED display we know, widely used in various fields, for the dissemination of information and visual display has brought about a revolutionary change.LCF editorial will be in this article for you to introduce the LED electronic display module of the basic structure, working principle, characteristics, application areas and development trend.

First, the basic structure of LED electronic display module

LED electronic display module is a precision unit composed of several key components. The core part is a large number of LED lamp beads, which are usually arranged in the form of a matrix. According to the display requirements, there are different densities of the arrangement, such as the common P2, P2.5, P3 and other models, the smaller the number represents the smaller the pitch of the lamp beads, the clearer the display effect. In addition to LED beads, the module also includes components such as driver chips, circuit boards, masks and cases. The driver chip is responsible for controlling the LED beads to light up, extinguish and adjust the brightness, which is the key to realise the precise display. The circuit board provides electrical connection and physical support for the LED beads and driver chip to ensure stable signal transmission. The mask protects the LED beads and scatters and evens out the light to make the display more uniform and softer. The bottom shell provides structural stability and protection for the whole module.

Second, the working principle of LED electronic display module

The working principle of LED electronic display module is based on the characteristics of LED (light-emitting diode). When the current passes through the LED chip, the electrons and holes are compounded, releasing energy in the form of photons, thus generating visible light. LED chips of different materials can emit different colours of light, and a full-colour display can be achieved by cleverly combining LED beads of three base colours: red, green and blue. When the module is in operation, control signals are transmitted from an external control card, and the driver chip accurately controls the current size and on-off time of each LED lamp bead according to these signals, thus forming a specific pattern, text or image on the module. This precise control can achieve different brightness levels and colour changes, laying the foundation for colourful display content.

Third, the characteristics of LED electronic display module

1, high brightness and visibility

LED electronic display modules have high brightness, which makes them still visible in outdoor bright light environment. Whether it is a square with direct sunlight or a street with complicated light, it will not affect its display effect. Moreover, through the brightness adjustment technology, the brightness can be automatically or manually adjusted according to the changes in ambient light, which not only ensures the visibility, but also avoids the discomfort caused by too bright to the human eye.

2, rich and vivid colours

As a result of red, green and blue LED beads can be mixed to produce a variety of colours, LED electronic display module can present extremely rich and vivid colours. They can accurately restore the colour information of various images and videos, bringing a visual feast to the audience. Whether it is displaying brilliant advertising images, realistic natural scenery or vivid animation effects, they are easily capable of doing so.

3, energy saving and environmental protection

LED itself is a kind of energy-saving light-emitting components, compared with the traditional display technology, LED electronic display module has obvious advantages in energy consumption. In the process of long-term operation, it can effectively reduce energy consumption and reduce operating costs. At the same time, LED does not contain mercury and other harmful substances, more friendly to the environment, in line with the requirements of modern society on environmental protection.

4, flexibility and scalability

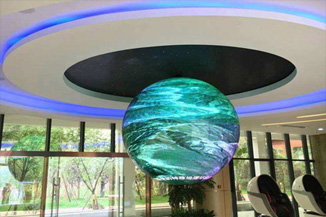

LED electronic display modules have great flexibility in size and shape. They can be spliced into various sizes and shapes of display according to the actual needs, whether rectangular, round, arc or shaped, can be achieved through a reasonable arrangement of modules. This scalability makes the LED display able to adapt to different installation environments and application scenarios, such as building facades, indoor halls, stage backgrounds and so on.

Fourth, the application fields of LED electronic display module

1、Advertising industry

In the field of advertising, LED electronic display module is an indispensable tool. Outdoor large billboards, advertising screens in commercial plazas, light box advertisements on both sides of the street, etc., are widely used LED display modules. They attract the attention of passers-by with dynamic and colourful advertisements, effectively convey brand information and product promotions, and improve the influence and dissemination effect of advertisements.

2、Traffic field

In transport hubs, such as airports, railway stations, bus stations, underground stations, etc., LED electronic display modules are used to display flight information, train schedules, train information, station navigation and other important content. On the highway, they are used as variable information boards to transmit road condition information and traffic control information to drivers in time to ensure the safety and smoothness of traffic.

3、Entertainment and cultural fields

In the theatre, cinema, concert venues and other entertainment venues, LED electronic display module as a stage background or auxiliary display equipment, for the audience to bring shocking visual effects. They can be combined with the performance content to create a fantastic atmosphere and enhance the audience's sense of immersion. In museums, exhibition halls and other cultural venues, LED display modules are used to display cultural relics information, historical data, art works, etc., providing audiences with a more vivid and intuitive visiting experience.

4、Sports events

In sports venues, LED electronic display modules play a vital role. They can display real-time scores, athlete information, replay of exciting moments, advertisements and other content. The huge display provides clear event information and wonderful pictures for the live audience and TV viewers, and becomes an indispensable part of the sports events.

Fifth, the development trend of LED electronic display module

With the continuous progress of science and technology, LED electronic display module is also continuing to develop. In the future, we can expect higher resolution and smaller pixel pitch to achieve more detailed and realistic display effect. At the same time, the refresh rate of the module will be further improved to reduce the flickering and dragging phenomenon of the screen, especially when displaying high-speed movement content more smoothly. In terms of materials and processes, continuous improvements will be made to enhance the stability and reliability of the modules and reduce the failure rate and maintenance costs. In addition, intelligence and interactivity will also become the development trend, LED electronic display module will be combined with the Internet of things, artificial intelligence and other technologies, to achieve remote control, automatic content update, human-computer interaction and other functions, to bring users a more convenient and rich experience.

In conclusion, as a key component of modern display technology, LED electronic display modules create a vibrant and colourful visual world for us with their unique structure, excellent performance and wide range of applications. They will continue to play an important role in various fields in the process of continuous development and innovation, promoting information dissemination and visual display technology to new heights.

The above is the basic structure, working principle, characteristics, application areas and development trend of LED electronic display module compiled by LCF editorial, hope it can help you, and welcome you to add or correct it.LCF is a national speciality, speciality, speciality, speciality, speciality and new small giant enterprise and national high-tech enterprise integrating research and development, intellectual property, sales, operation and service. If you need to buy LED electronic display friends can also directly contact the LED display manufacturer LCF, the big country brand, trustworthy!
